Equipment Features
- The screw of the HDPE extruder adopts Taiwan technology processing, provides perfect plasticization and high extrusion efficiency;

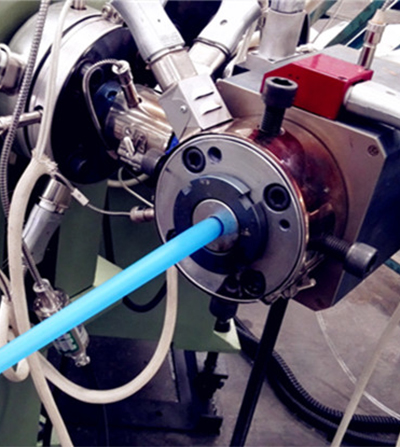

- High pressure positive displacement mould makes the headpiece capable of higher melt pressure, improve the pipe quality and stabilize the extrusion process;
- Cooling vacuum trough is made of SUS304 stainless steel, the supporting frame equipped with spiral lifter can realize 3-dimensional adjustment, enables the operation to be more convenient .High quality liquid circulating vacuum pump provides steady vacuum negative pressure, the stainless steel water tank and centrifugal pump combined with external cooling water supply form a water circulation;
- BETA Laser measuring system, forming closed-loop feedback control, eliminating diameter deviation on-line;

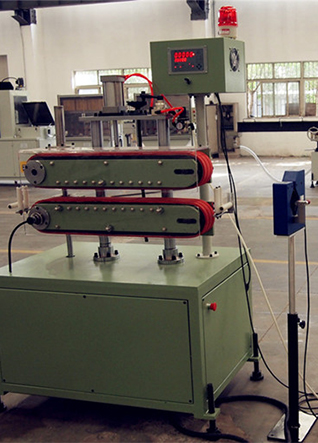

- Puller equipped with multi-layer wear-resistant synchronous belt, without sliding phenomenon. High-level precision roller drive traction, YASKAWA Servo driving system or ABB AC driving system, realize extremely stable pulling;
- Specially designed Winding machine with tension induction regulator, applicable to soft pipes, keep winding under natural relaxation state, when tension condition change, the fluctuation within manageable scope, avoid tube overdrawn by too fast winding speed and too slow winding speed.
Our advantage
Main Technical Parameter
| Model | Processing tube range (mm) | Screw diameter (mm) | （L/D） | Main motor power(kW) | Production speed
(m/min) |
| SXG-45x25 | 4.0～10.0 | 45+25 | 28-30 | 11 | 5-30 |
| SXG-50x30 | 6.0～18.0 | 50+30 | 28-30 | 18.5 | 8-45 |
| SXG-65x30 | 8.0～25.0 | 65+30 | 28-30 | 30 | 8-80 |
| SXG-90x45 | 12.0～40.0 | 90+45 | 28-30 | 45 | 8-120 |
